Product Features


• Maxes out horsepower and torque on dual pulley setups

• Includes everything needed to bolt on 80mm throttle body

• Free tune upgrade included with IE Dual Pulley Tunes

• Direct fit install with IE Cold Air Intakes

• High flow CNC machined cast aluminum throttle adapter

• Plug and play throttle body harness included

IE Audi 3.0T Throttle Body Upgrade Kit | Fits B8.5 S4, S5 & C7 A6, A7, & SQ5/Q5

In Stock

$799.99
SKU: IEINCG3

Already running a Dual Pulley setup on your Audi S4 or S5 and looking for more? The IE Ultimate Throttle Body Upgrade kit includes everything needed to remove the final power restriction with an over 20% higher flowing throttle body fully releasing the complete power potential from your factory supercharger. With matching software (free upgrade for existing Dual Pulley customers) this will result in up to 548HP!

Product Summary
Details

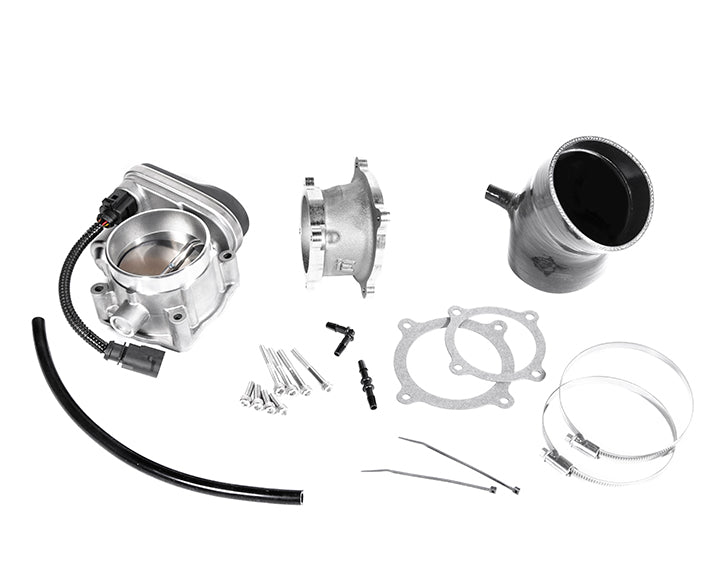

Complete throttle body upgrade

LET YOUR SUPERCHARGER BREATHE

IE's Ultimate Throttle Body Upgrade Kit has been engineered for existing Dual Pulley Tuned Audi 3.0T Supercharged engines. This complete bolt-on kit completely removes the removes the factory restrictive throttle body and replaces it with a much larger 80mm throttle body and cast adapter that creates a smooth transition from the air intake to the supercharger.

YOUR STOCK THROTTLE IS ROBBING YOU OF POWER

Your factory-installed throttle body has a smaller inlet than the supercharger that functions perfectly fine on stock power levels. However, on higher power setups running dual pulleys, heat exchangers, higher octanes, and Stage 2 Dual Pulley ECU calibrations this small restriction becomes a major damn for airflow unable to keep up with aftermarket performance parts requesting more flow.  By increasing the size of the throttle body with our smooth transition cast-aluminum adapter the supercharger can fully breathe to its utmost capability..

IE Throttle Body Upgrade Flow Test

FREE ECU TUNE CALIBRATION

Throttle body upgrades require matching ECU software to run and perform correctly. IE's Throttle Body ECU Tune is available as a free upgrade for all existing IE Stage 2 Dual Pulley owners. Don't already own IE Dual Pulley? The Throttle Body update is also included with all Dual Pulley tunes when purchased at no additional cost.
IE Throttle Body Software Tune
IE Throttle Body Harness

OPERATES LIKE FACTORY

Your car will be up and running in no time, by simply flashing the Throttle Body Upgrade software and plugging in the new throttle body with the included extension harness. There are no electrical trick boxes or funky harnesses to give you issues.

SIZE MATTERS

Before the design phase, engineers performed flow bench and power tests of multiple throttle body sizes to determine the best throttle body size to include in our kit. This is a delicate balance. While easier to fit, smaller throttle bodies do not completely open up the factory restriction while larger 90mm throttle bodies resulted in no extra power gains. The included 80mm throttle body offers the most power available from a size standpoint when upgrading your throttle body.

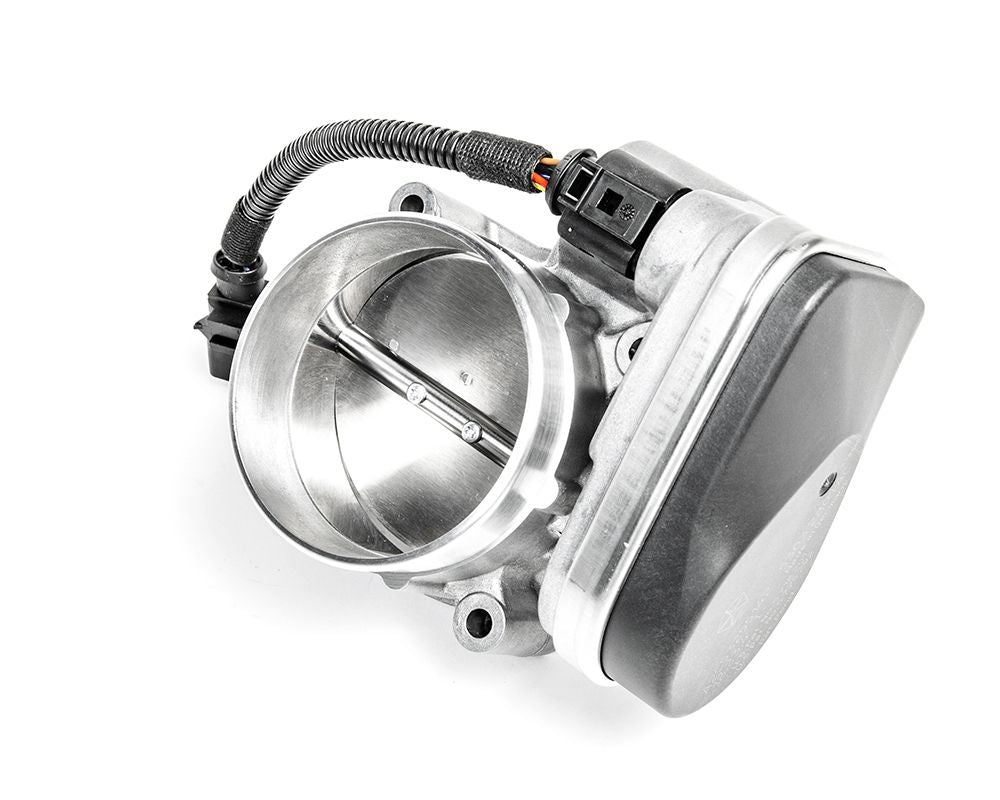

IE 80mm Throttle Body Upgrade

SIZE IS NOTHING WITHOUT FLOW

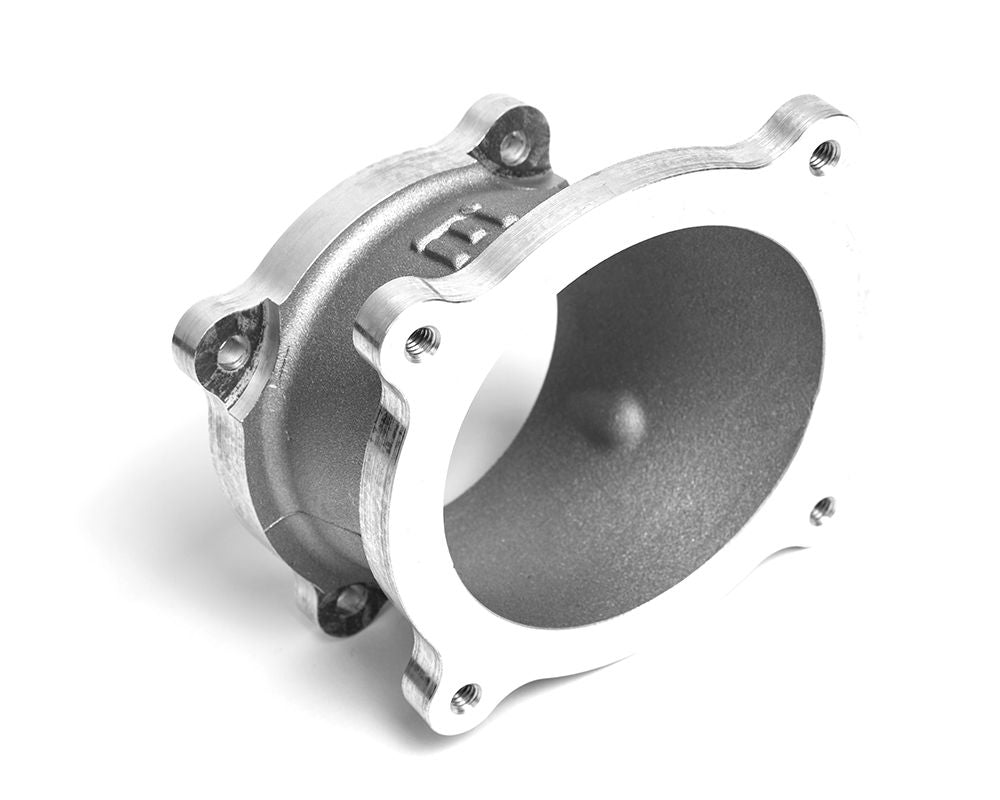

The larger throttle body is only one part of the equation, simply creating an adapter plate and bolting on a larger throttle body creates abrupt changes and inhibits air flow. The included IE throttle adapter is cast and CNC machined from aerospace quality aluminum creating a smooth transition from the larger throttle body to the supercharger inlet

IE Throttle Body Adapter Flow

DIRECT FIT TO IE COLD AIR INTAKE

IE's Throttle Body Upgrade Kit includes a new air intake inlet hose that is a direct fit your IE Cold Air Intake creating a perfect transition from the intake velocity stack directly to the new 80mm throttle body. No modifications or extra adapters required!
IE Throttle Body Intake adapter

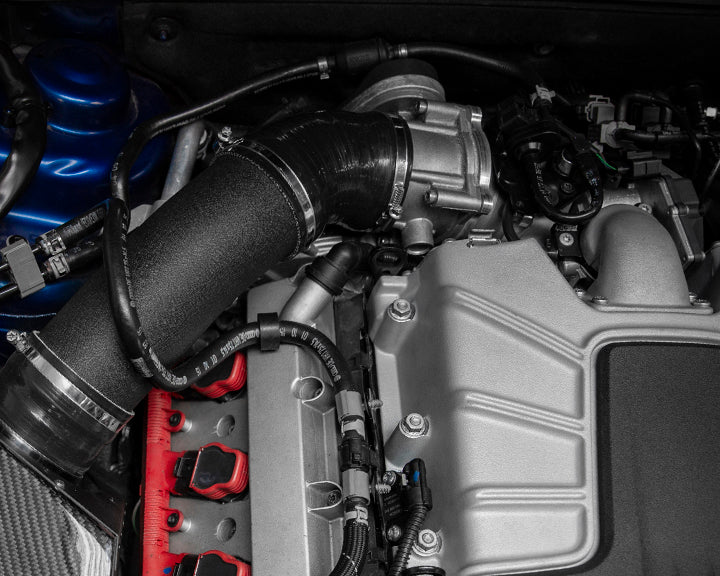

IE Throttle Body Easy Install

EASY INSTALLATION

Installing your new IE Throttle Body Upgrade kit is easy and can be completed with basic hand tools typically within 1.5-2 hours for most users. You can read and download the complete install guide by CLICKING HERE
Power charts

DYNO RESULTS


Fitment

DIRECT FIT WITH IE COLD AIR INTAKE INSTALLED

The IE Throttle Body Upgrade Kit is a direct bolt-on kit requiring no modifications or alterations on the following vehicles with an IE Cold Air Intake installed.

    • Audi - S4 2009-2015 (B8 - B8.5)
    • Audi - S5 2008-2015 (B8 - B8.5)

    REQUIRES CUSTOM ADAPTATION TO AIR INTAKE

    The IE Throttle Body Upgrade Kit will fit the following vehicles, however, the included IE air intake inlet will require custom adapter work to fit your stock or aftermarket intake and is not a direct install.

    • Audi - A6 2012-2015 (C7 - C7.5) 3.0T engine
    • Audi - A7 2010-2015 (C7 - C7.5) 3.0T engine
    • Audi - SQ5 2008-2015 (8R)
    • Audi - Q5 2008-2015 (8R) 3.0T engine
    • Audi - Q7 2005-2015 (4L) 3.0T engine
