IE 3.0T TFSI 188mm Crank Pulley & Damper Upgrade Kit| Fits Audi B8/B8.5 S4, S5, Q5, SQ5 & C7 A6, A7
IE 3.0T TFSI 188mm Crank Pulley & Damper Upgrade Kit| Fits Audi B8/B8.5 S4, S5, Q5, SQ5 & C7 A6, A7
IE 3.0T TFSI 188mm Crank Pulley & Damper Upgrade Kit| Fits Audi B8/B8.5 S4, S5, Q5, SQ5 & C7 A6, A7
IE 3.0T TFSI 188mm Crank Pulley & Damper Upgrade Kit| Fits Audi B8/B8.5 S4, S5, Q5, SQ5 & C7 A6, A7
IE 3.0T TFSI 188mm Crank Pulley & Damper Upgrade Kit| Fits Audi B8/B8.5 S4, S5, Q5, SQ5 & C7 A6, A7
IE 3.0T TFSI 188mm Crank Pulley & Damper Upgrade Kit| Fits Audi B8/B8.5 S4, S5, Q5, SQ5 & C7 A6, A7
IE 3.0T TFSI 188mm Crank Pulley & Damper Upgrade Kit| Fits Audi B8/B8.5 S4, S5, Q5, SQ5 & C7 A6, A7

IE 3.0T TFSI 188mm Crank Pulley & Damper Upgrade Kit| Fits Audi B8/B8.5 S4, S5, Q5, SQ5 & C7 A6, A7

Rated 5.0 out of 5
Based on 9 reviews

IEBAVJ7

Regular price $432.99 Save $-432.99
In Stock

Free standard shipping in US for orders over $299

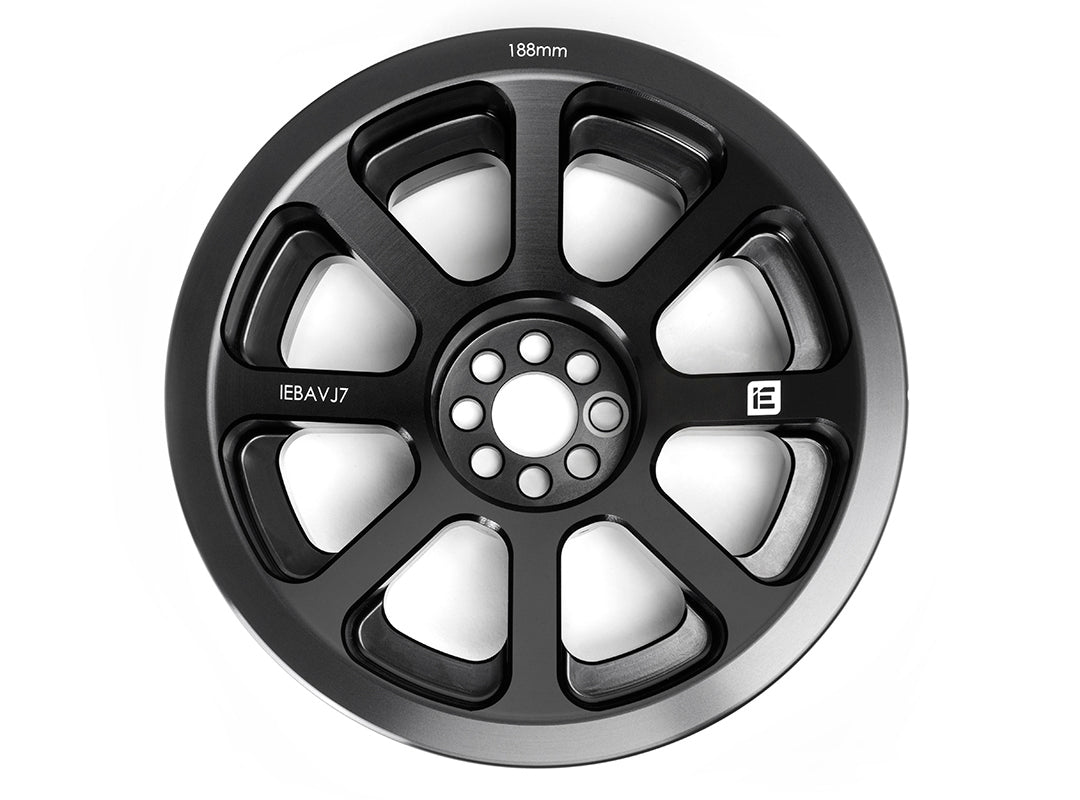

IE's 188mm overdrive crank pulley creates a dual pulley ratio when combined with your IE 57.5mm supercharger pulley for the Audi supercharged 3.0 TFSI platform. This complete one-piece billet design replaces the crank pulley and engine damper for total reliability.

LIGHTWEIGHT
SINGLE-PIECE

BILLET ALUMINUM

PULLEY & DAMPER
REPLACEMENT

IN ONE

CRANK PULLEY FOR
DUAL PULLEY

RATIO POWER

LEADING FEATURES

  • Combine with IEBAVJ1C for dual pulley tune and up to 548HP
  • 188mm overdrive crank pulley upgrade for dual pulley setups
  • Replaces crank pulley and engine damper
  • Combined pulleys increases supercharger RPM by 26% over stock
  • Lightweight design for faster & easier engine revs
  • USA in-house designed and manufactured
  • CNC machined from 6061-T6 aluminum
  • Black anodized finished for superior protection and looks
  • Laser-etched logo and alignment marks for easy install

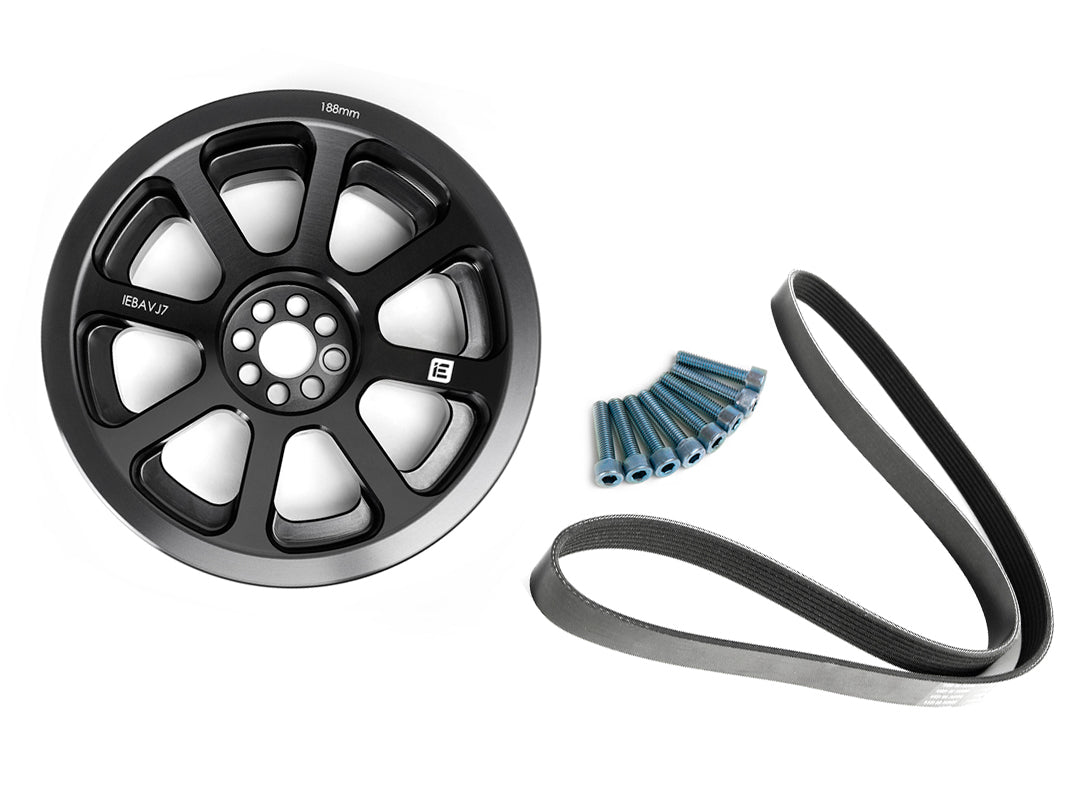

  • Includes high-strength bolts and dual pulley sized SC belt

Requires 57.5mm SC pulley and stage 2 dual pulley ECU tune

DUAL PULLEY UPGRADE

This 188mm crank pulley is designed to be combined with an IE 57.5mm supercharger pulley (IEBAVJ1C) to upgrade your existing single pulley setup for stage 2 dual pulley tunes.

If you do not have a upgraded supercharger pulley and want to jump straight to Stage 2 double pulley power, the 207mm crank pulley IEBAVJ6 can be used instead without the need to purchase a smaller press-on SC pulley.

PULLEY SC PULLEY SIZE (MM) CRANK PULLEY SIZE (MM) FINAL RATIO

STOCK PULLEYS

63.20

162.25

2.5672

SINGLE PULLEY (SC PULLEY)

57.5

162.25

2.8217

DUAL PULLEY (SC + CRANK PULLEYS)

57.5

188

3.2695

DUAL PULLEY (207MM CRANK PULLEY)

63.20

207

3.2753

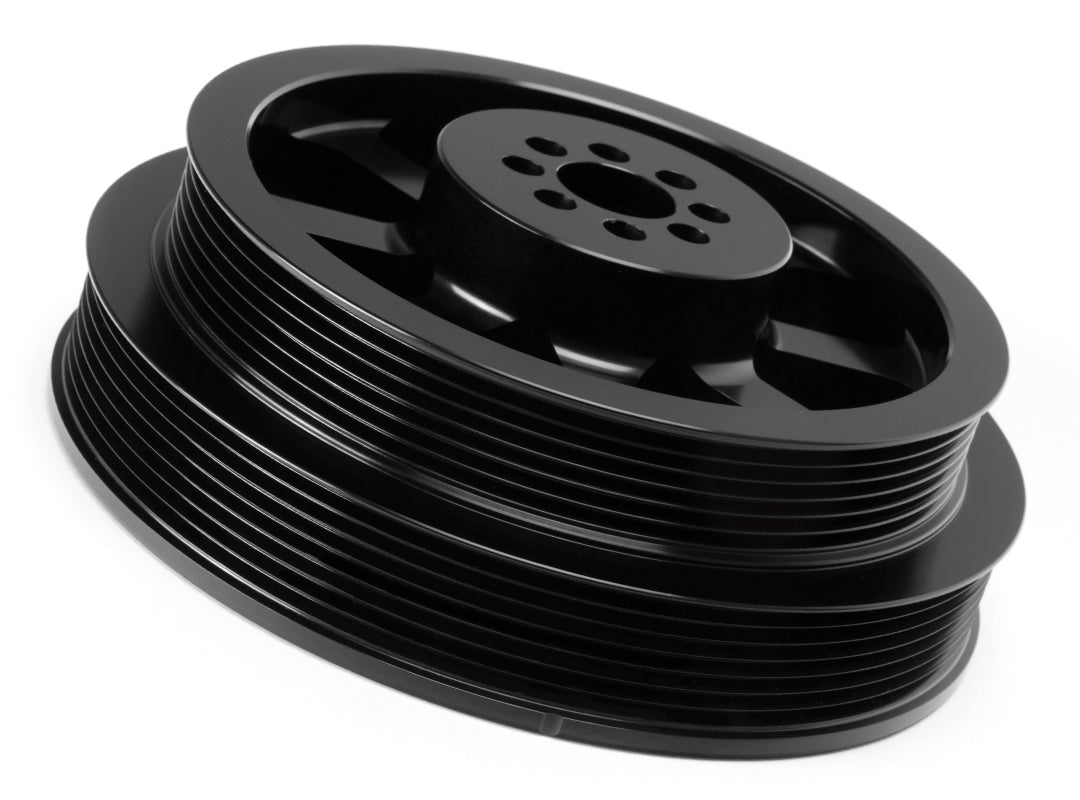

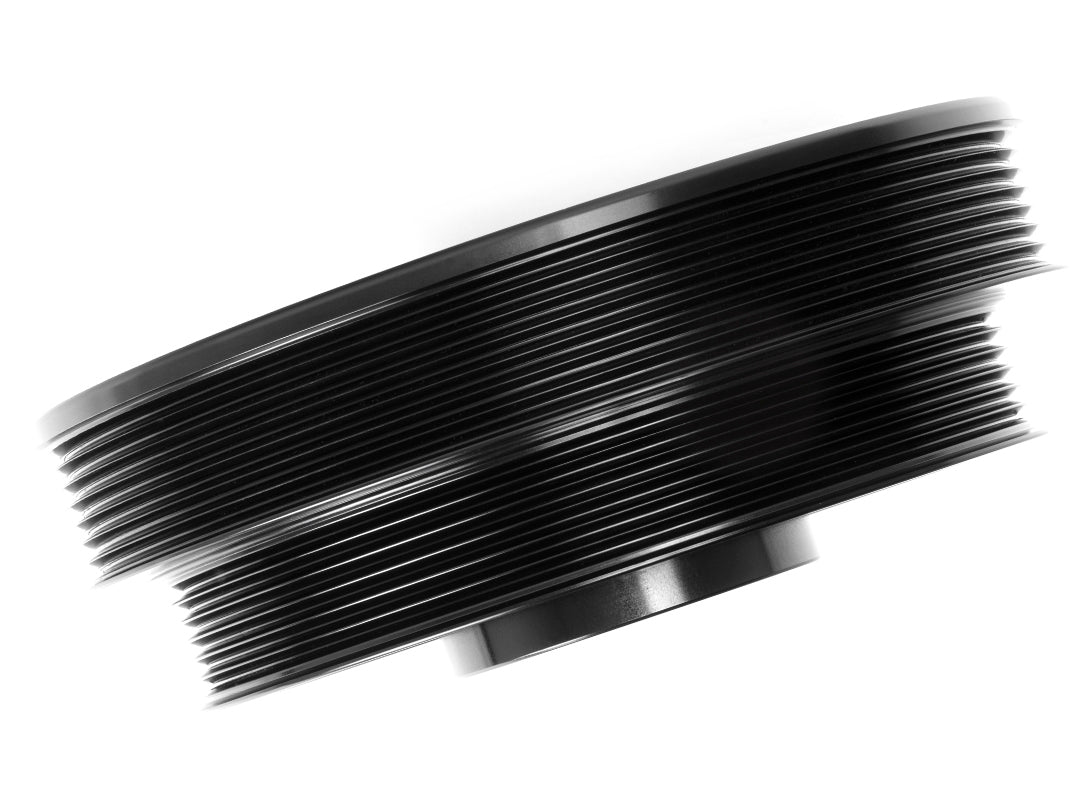

CRANK PULLEY & DAMPER

This complete one-piece pulley replaces both the crank pulley and factory engine damper in one unit. Replacing the engine damper provides increased reliability and protection from a possible faulty stock engine damper that is known to separate, causing costly engine damage.

LIGHTWEIGHT DESIGN

Weighing in at only 1613 grams, IE engineers have produced a robust pulley while trimming as much fat as possible without risking the structural design. The aluminum construction is 59% lighter than the stock setup, reducing rotating mass, resulting in faster engine revs and less parasitic loss.

MADE IN THE USA

This one-piece design delivers significant power and is a vital link that holds your engine and supercharger together. Enjoy the peace of mind knowing your pulley is 100% in-house designed and CNC machined from top-of-the-line sourced aluminum alloy followed by extensive quality-control.

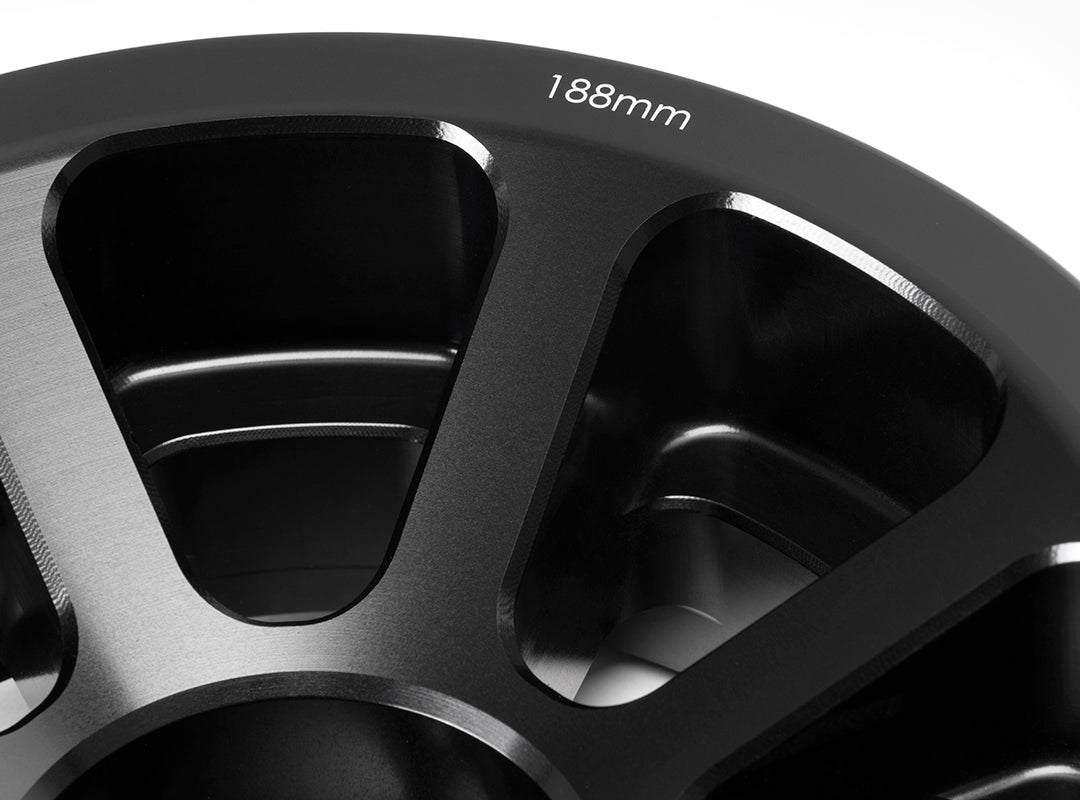

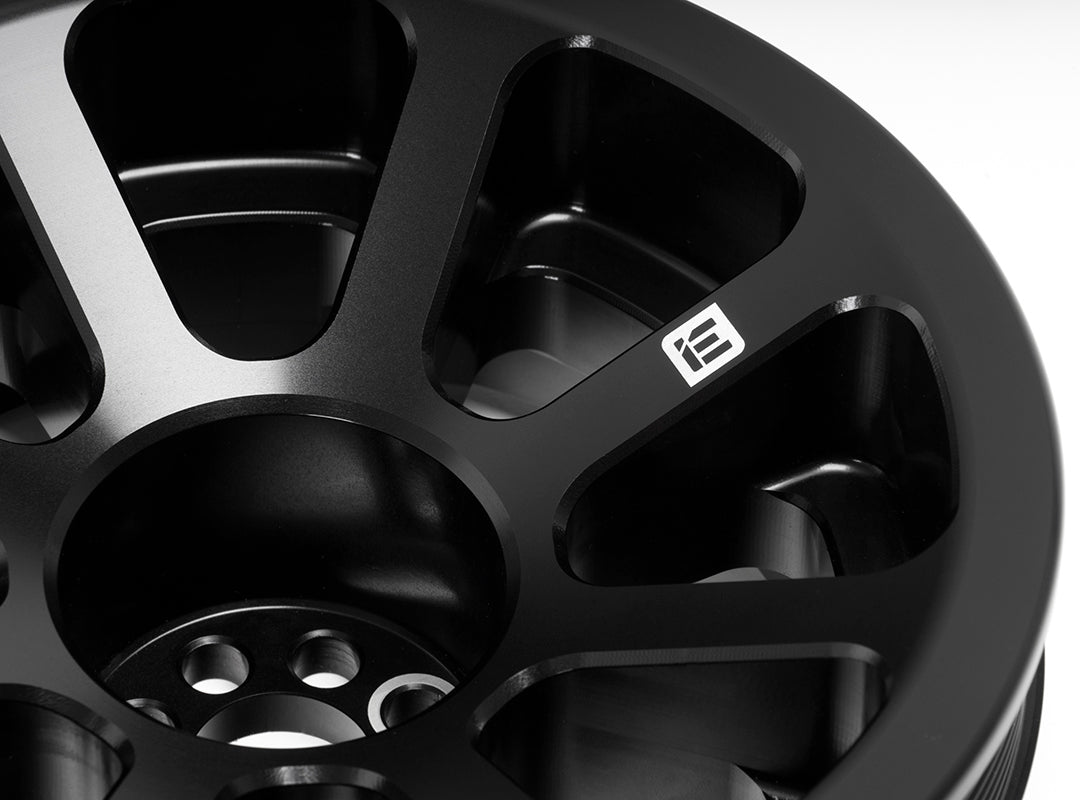

QUALITY FINISH

The 6061-T6 aluminum pulley is finished with an attractive black anodized finish. The anodizing process offers superior protection against corrosion while retaining the proper installation clearances. After applying the coating, the alignment marks, part number, and logo are laser etched to guarantee long life and a fantastic look.

INSTALLATION

Installing your new pulley is straightforward and hassle-free with the proper tools.

Install time around 2-3 hours

VEHICLE FITMENT GUIDE

MAKE MODEL YEAR ENGINE

AUDI

S4

B8/B8.5 2009-2016

3.0T TFSI Supercharged

AUDI

S5

B8/B8.5 2013-2015

3.0T TFSI Supercharged

AUDI

S5 convertible

B8/B8.5 2008-2015

3.0T TFSI Supercharged

AUDI

SQ5

B8/B8.5/8R 2012-2017

3.0T TFSI Supercharged

AUDI

Q5

B8/B8.5/8R 2008-2017

3.0T TFSI Supercharged

AUDI

A6

C7/C7.5 2012-2016*

3.0T TFSI Supercharged*

AUDI

A7

C7/C7.52011-2016*

3.0T TFSI Supercharged*

*2016-2018 A6 & A7 CREC 3.0T engines do not have compatible IE software support for lower crank pulleys. IE single pulley CREC tunes safely produce typical dual pulley ratio numbers on this platform. Running dual pulley ratio setups may cause supercharger clutch failure on CREC engines and is not recommended. CREC engine is also found in ROW (rest-of-world) markets on some late-model S4 & S5 3.0T as well. CREC engines are easily identified as the supercharger pulley has 4 bolts to attach it to the supercharger instead of a press-fit style.
