IE 2.0T FSI/TSI Water Meth Throttle Plate
IE 2.0T FSI/TSI Water Meth Throttle Plate IE 2.0T FSI/TSI Water Meth Throttle Plate IE 2.0T FSI/TSI Water Meth Throttle Plate

Product Features


• Easy water/meth installation solution

• Optimized flow location for water/meth nozzle

• Includes hardware for OE and IE intake manifolds

• Long-life and stealth bright black anodized finish

• 1/8" NPT threaded port fits most water/meth nozzles

• In-house CNC machined aluminum

IE 2.0T FSI/TSI Water Meth Throttle Plate

Drilling and tapping into the factory 2.0T FSI/TSI plastic intake manifold for water/meth ports often leads to leaks or cracked and broken manifolds. Skip the trouble with IE's easy no-fuss water/meth throttle body spacer solution.

Availability: In stock

$79.99
SKU: IEBAVC14
Product Summary

TECHNICAL DETAILS

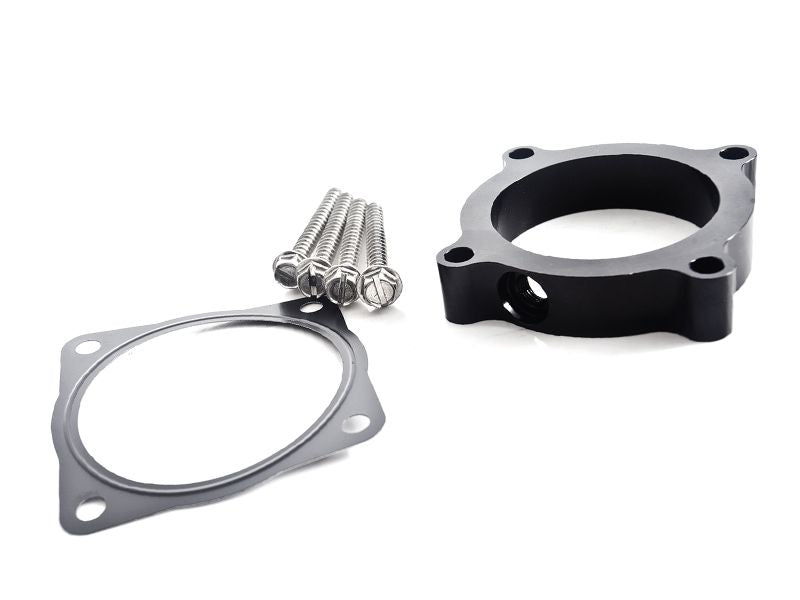

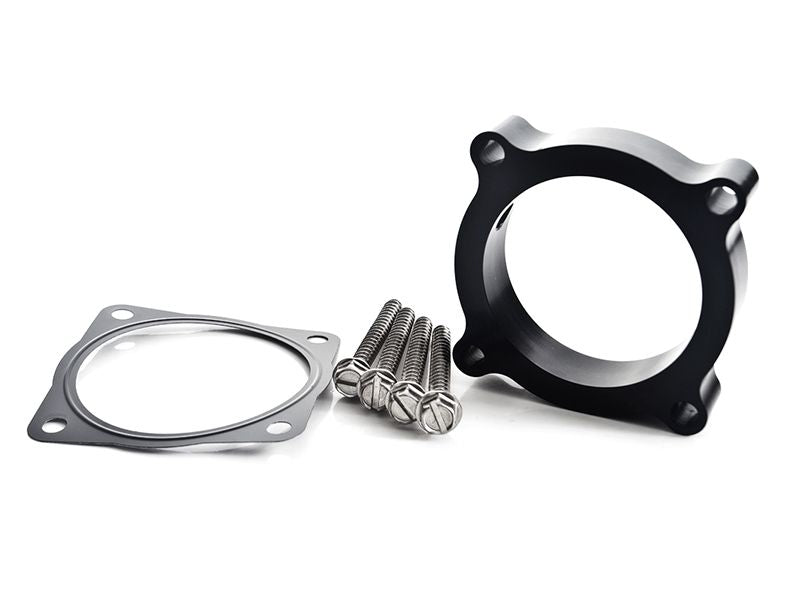

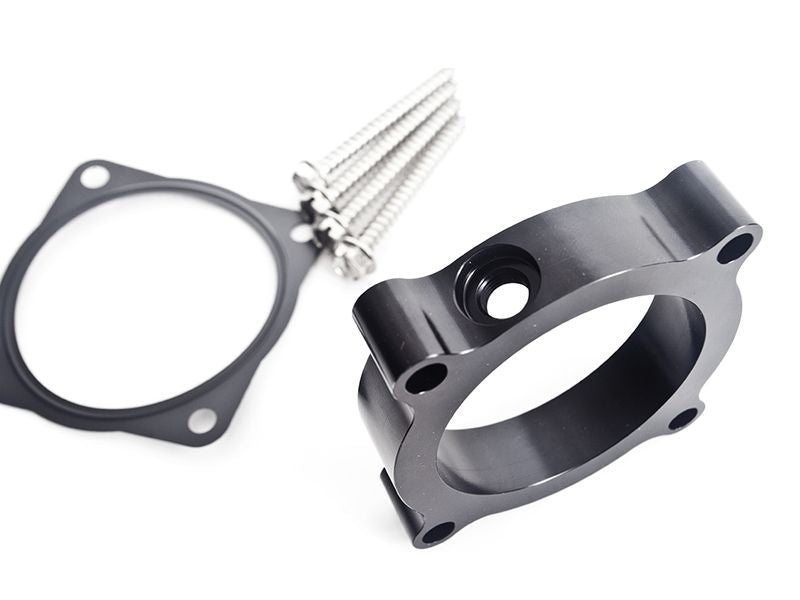

Make installation of your water meth kit a simple job. This plate gets sandwiched between the throttle body and intake manifold, allowing you to run a 1/8" NPT nozzle right after the throttle body. Manufactured from 6061 aircraft grade aluminum and finished with a bright black anodize. Kit includes all necessary extended hardware, and gasket for quick installation.

INCLUDED EXTENDED HARDARE

  • Includes coarse screw extended hardware for OEM plastic intake manifold
  • Includes M6 socket head screw extended hardware for IE cast aluminum intake manifold

VEHICLE FITMENT



  • Audi - A4 2005-2008 (B7) 2.0T engines

  • Audi - A4 2009-2015 (B8 - B8.5) 2.0T engines

  • Audi - A4 Allroad 2009-2015 (B8 - B8.5) 2.0T engines

  • Audi - A5 2008-2015 (B8 - B8.5) 2.0T engines

  • Audi - A6 2005-2011 (C6) 2.0T engines

  • Audi - A6 Allroad 2005-2011 (C6) 2.0T engines

  • Audi - A6 2012-2015 (C7 - C7.5) 2.0T engines

  • Audi - TT 2008-2015 (MK2 - 8J) 2.0T engines

  • Audi - TTS 2008-2015 (MK2 - 8J) 2.0T engines

  • Audi - A3 2006-2013 (MK2 - 8P) 2.0T engines

  • Audi - S3 2006-2013 (MK2 - 8P) 2.0T engines

  • Audi - Q3 2011-2015 (8U) 2.0T engines

  • Audi - Q5 2008-2015 (8R) 2.0T engines

  • VW - Golf R 2012-2012 (MK6) 2.0T engines

  • VW - GTI 2006-2009 (MK5) 2.0T engines

  • VW - GTI 2010-2014 (MK6) 2.0T engines

  • VW - Jetta & Jetta GLI 2006-2010 (MK5) 2.0T engines

  • VW - Jetta & Jetta GLI 2010-2014 (MK6) 2.0T engines

  • VW - Jetta SportWagen 2011-2014 (MK6) 2.0T engines

  • VW - CC 2009-2015 (3C8) 2.0T engines

  • VW - EOS 2006-2015 (1F7) 2.0T engines

  • VW - Beetle 2011-2015 (MK2) 2.0T engines

  • VW - Passat 2006-2010 (B6) 2.0T engines

Share your thoughts on this product Write a review
Read Full Review
Great idea needs refinement
2013 Beetle 2.0t gen3
Location is excellent post throttle body however fitment for my application is questionable. Plate is thick and did bolt up but had pressure on radiator hose fitting to water pump. Pressure was just enough to cause a very small drip occasionally and a constant smell of coolant as it evaporated on block. The 1/8-27 npt thread is recessed enough to make w/m nozzle fit flush with inside but my snow performance nozzle has flats on it to tighten and the recess made it difficult to get nozzle tightened into plate. Would also like to see an o-ring seal possibly to eliminate crush steel gasket.
On a side note I run IE camber plates and Intercooler (silicone adapters different for my application as well) and having installed other brands the quality of the IE parts are Excellent, precise and notably superior to what I have seen from other manufacturers in my opinion!
